FEATURES
- Easy To Use: Install a 35mm hole opener, adjust the drilling depth to 0-14mm normally, and then lock the limit ring. After the hold was made you can install the Hinge Side Plate and finally get a perfect door or side panels.
- Durable Material: Made of aluminium alloy, precise manufacturing, accurate positioning and convenient operation, long-lasting.
- Easy To Adjust: The drill guide can be adjusted to tension wood boards of different thicknesses. For furniture factories and woodworking enthusiasts, this is a great tool kit.

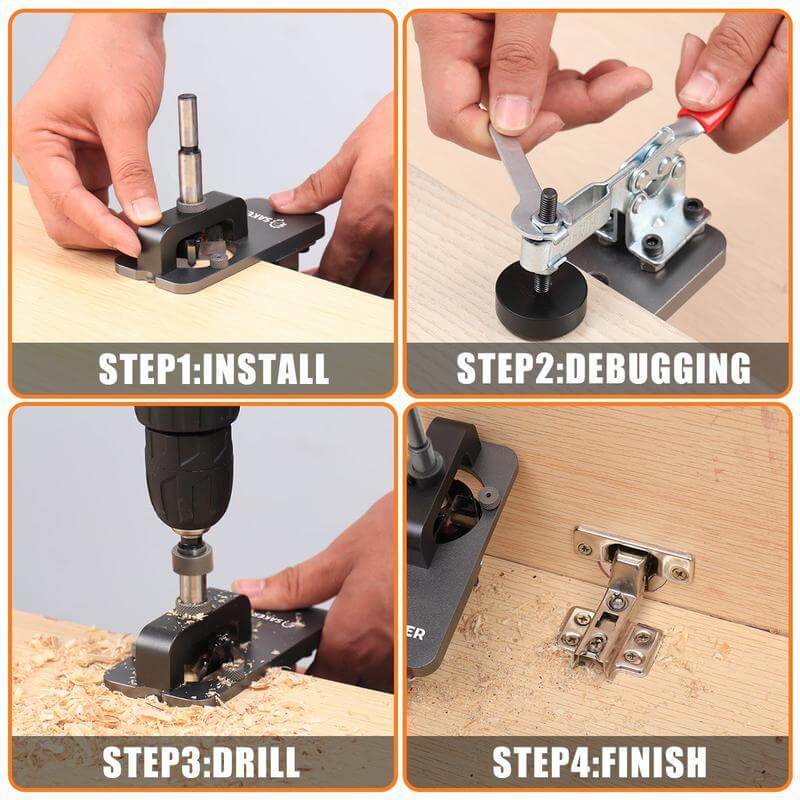

INSTALLATION METHOD
-

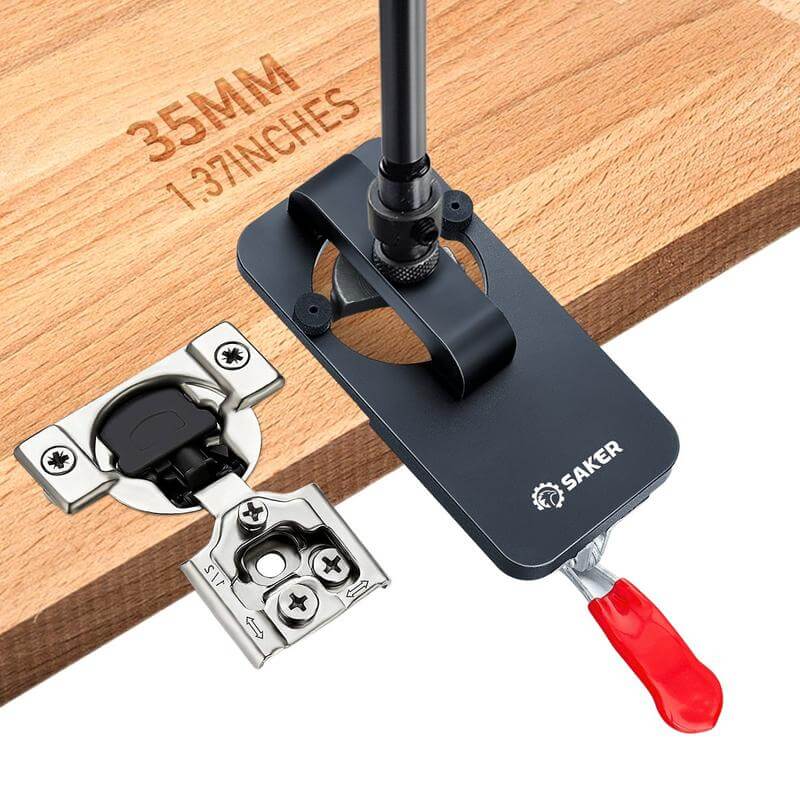

Install a 35mm hole opener, adjust the drilling depth, which is normally 0-14mm, and then lock the limit ring. The hinge drilling jig comes with a wrench to loosen the screw to adjust.
-

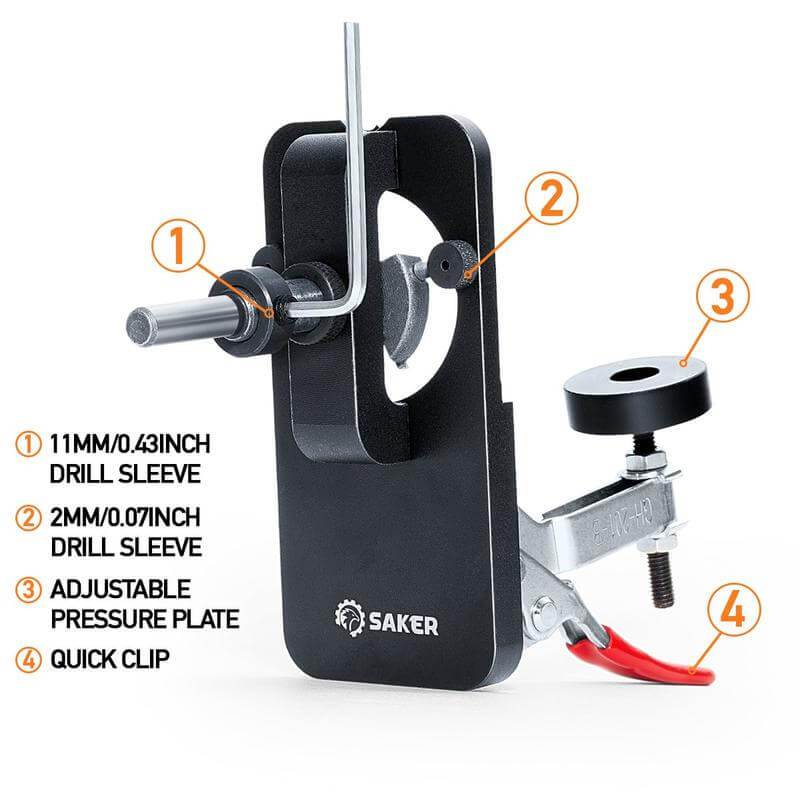

Adjust the fixed size of the black pressing block of the quick clamp (note: the tool can adjust the fixed board size to 15-25mm).
-

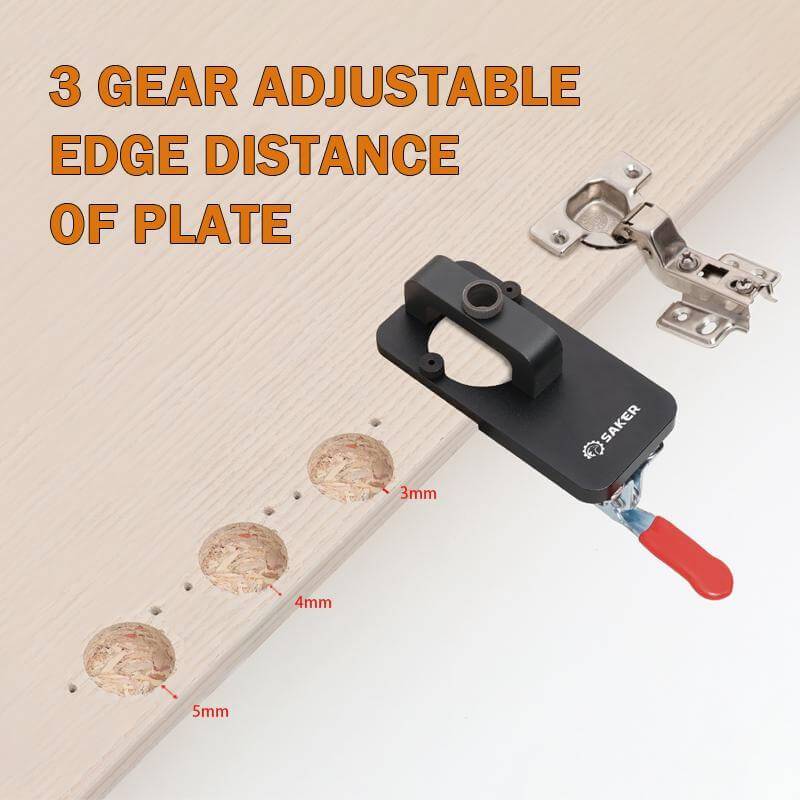

3 gear adjustable edge distance of plate. Use margin block adjustment. The distance from the 35mm hole to the edge is 3~5mm (the distance can be adjusted), which is suitable for most common hinges.
-
Move the hole punch to the board marking and punching position, and lock the quick clamp.
-
Fasten the handle of the hole opener with the electric drill, press down the hole at a constant speed to a depth of 12-13mm, and then drill 2mm screw holes on the left and right sides.
-
Install the 35mm hinge.
SPECIFICATIONS
- Material: Aluminum alloy
- Colour: Black
- Size: 4.72*4.72*2.36inch/120*120*60mm
- Weight: 1.34lbs

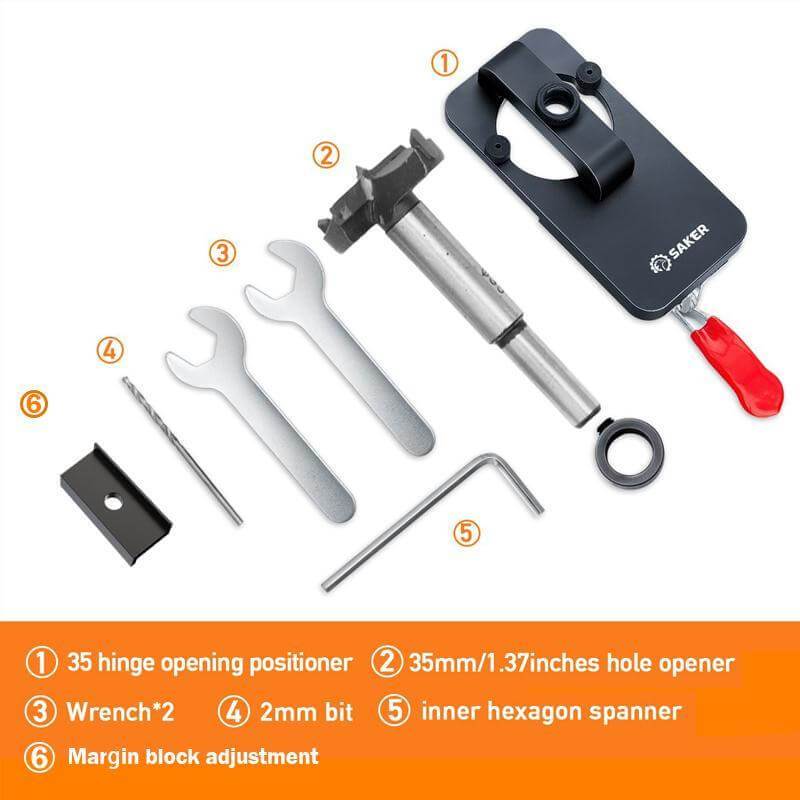

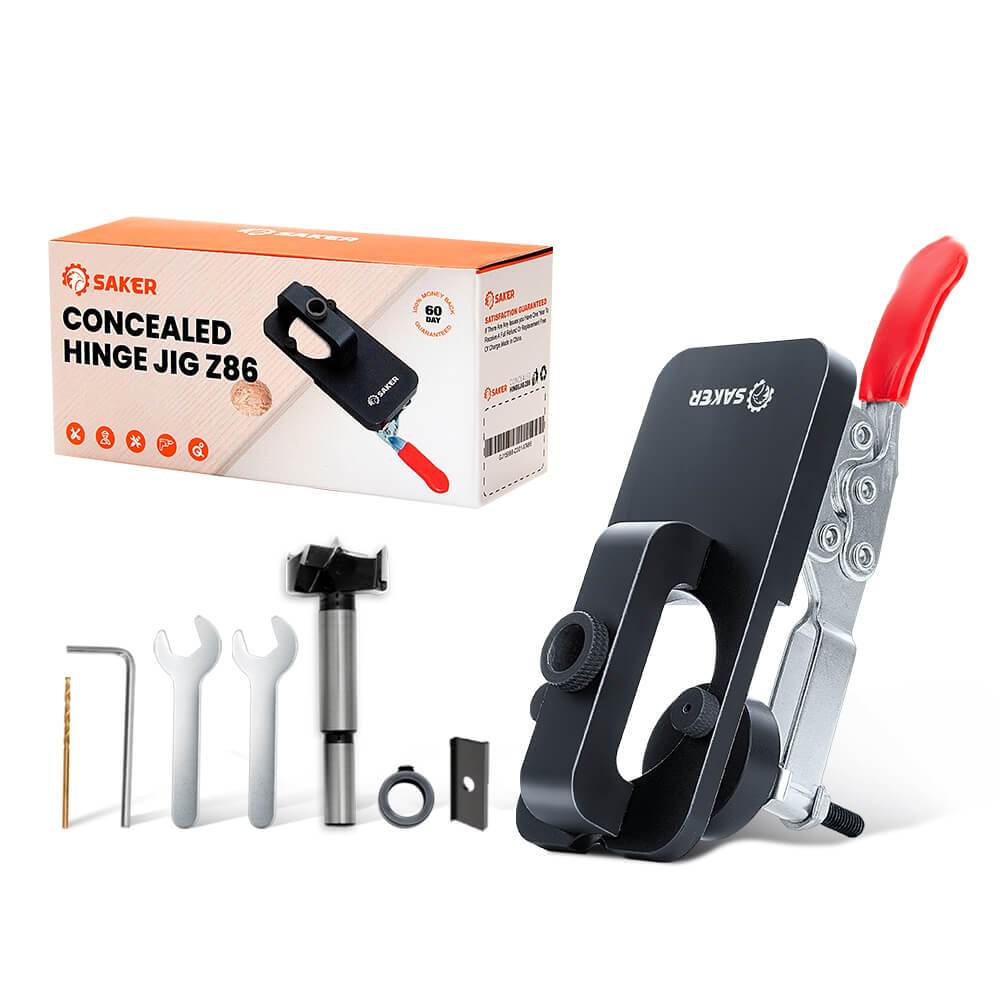

PACKAGE INCLUDES
-
1*Saker Concealed Hinge Jig Z86 Include:
1*hinge punch locator body;
1*35mm hole opener(with limit ring);
2*spanner;
1*2mm drill bit;
1*hexagon wrench;
1*margin block adjustment
